Importing a PDF table with a Custom Parser

Overview

In this guide, we’ll build a custom file parser to support PDF uploads using the PDFTables API to extract tables from PDFs.

Getting Started

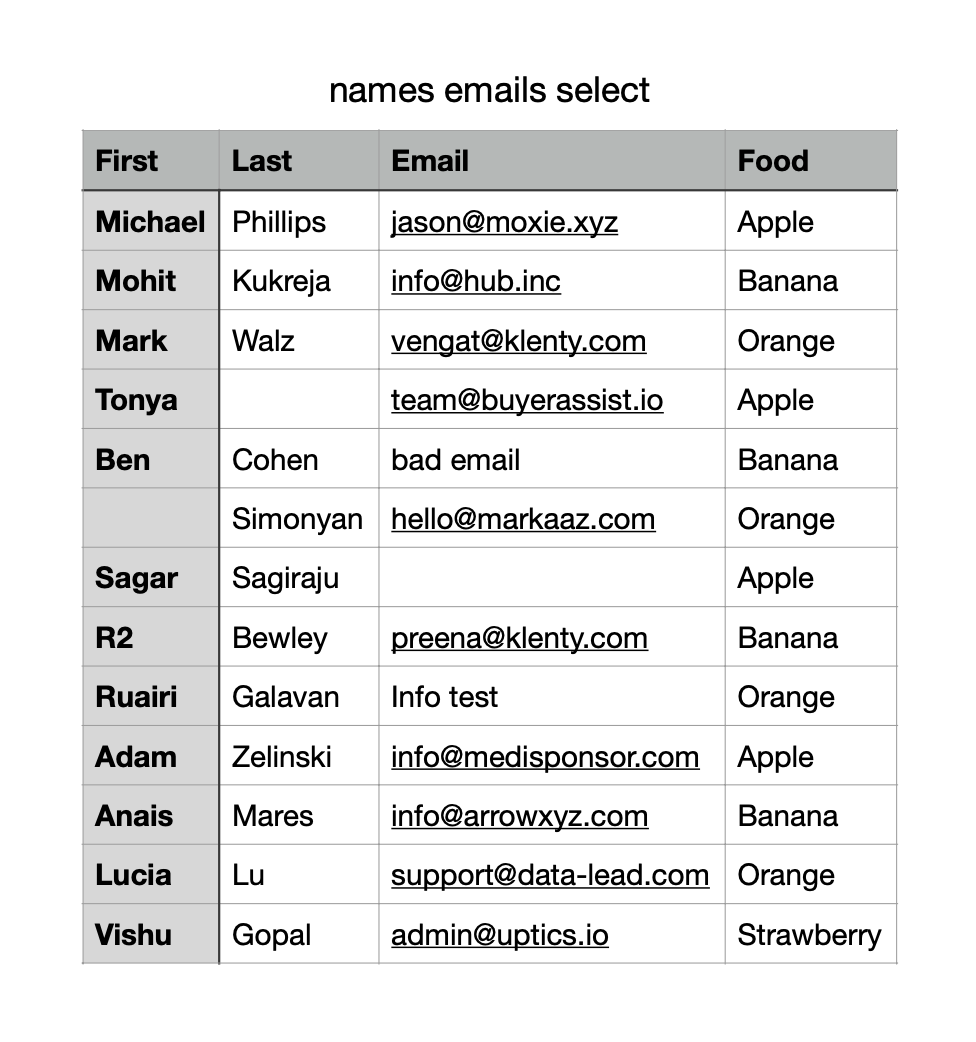

For our example we’re importing users from a table in a PDF document.

We’ll rely on PDFTables API to parse the PDF into a CSV string. Once we have a CSV string, we’ll use an additional external library, PapaParse, to parse the CSV string into a two dimensional array of data for Dromo to receive.

To use this demo you’ll need to get your own paid API key from PDFTables.

Adding the Custom Parser to Dromo

Dromo provides an interface for implementing custom file parsing. We need to specify the file extension(s) and the parsing logic that will be used to parse the file.

...
const dromo = new DromoUploader("FRONTEND_API_KEY", fields, settings, user);

dromo.registerFileParser({
  extensions: ["pdf"],
  parseFile: async (buffer, fileName) => {
    ...
  },
});

...
<DromoUploader
  fileParsers={[
    {
      extensions: ["pdf"],
      parseFile: async (buffer, fileName) => {
        ...
      },
    },
  ]}>
  Import Users
</DromoUploader>

Implementing PDF Parsing Logic

Dromo passes a buffer: ArrayBuffer and fileName: string to the parseFile callback. We will use the buffer to create a file that we can POST to the PDFTables API.

async (buffer, fileName) => {
  const myPDFTablesAPIKey = "<YOUR PDF TABLED API KEY>";
  const url = `https://pdftables.com/api?key=${myPDFTablesAPIKey}&format=csv`;
  const formData = new FormData();
  formData.append("file", new Blob([buffer]), fileName);

  const response = await fetch(url, {
    method: "POST",
    body: formData,
  });

  // text data response is a CSV string
  const data = await response.text();
  ...
};

If successful, the response.text() will contain a CSV string. Like this:

'my_filename,,,\nFirst,Last,Email,Food\nMichael,Phillips,jason@moxie.xyz,Apple\nMohit,Kukreja,info@hub.inc,Banana\nMark,Walz,vengat@klenty.com,Orange\nTonya,,team@buyerassist.io,Apple\nBen,Cohen,bad email,Banana\n,Simonyan,hello@markaaz.com,Orange\nSagar,Sagiraju,,Apple\nR2,Bewley,preena@klenty.com,Banana\nRuairi,Galavan,Info test,Orange\nAdam,Zelinski,info@medisponsor.com,Apple\nAnais,Mares,info@arrowxyz.com,Banana\nLucia,Lu,support@data-lead.com,Orange\nVishu,Gopal,admin@uptics.io,Strawberry\n1,,,\n'

We need to convert this in to a two dimensional array. We’ll use PapaParse, a free package, to convert the string to the desired format.

import Papa from "papaparse";
...

// text data response is a CSV string
const data = await response.text();
// 'names email select,,,\nFirst,Last,Email,Food\nMichael,Phillips...'

const lines = Papa.parse(data).data as string[][];
// [['names email select', '', '', ''], ['First', 'Last', 'Email', 'Food'], ['Michael', 'Phillips', 'jason@moxie.xyz', 'Apple']...]
...

Ensure that every line in the two dimensional array is the same length, then return the data.

const maxLen = Math.max(...lines.map((row) => row.length));
const result = lines.map((row) => {
  const padding = Array(maxLen - row.length).fill("");
  return [...row, ...padding];
});

return result;

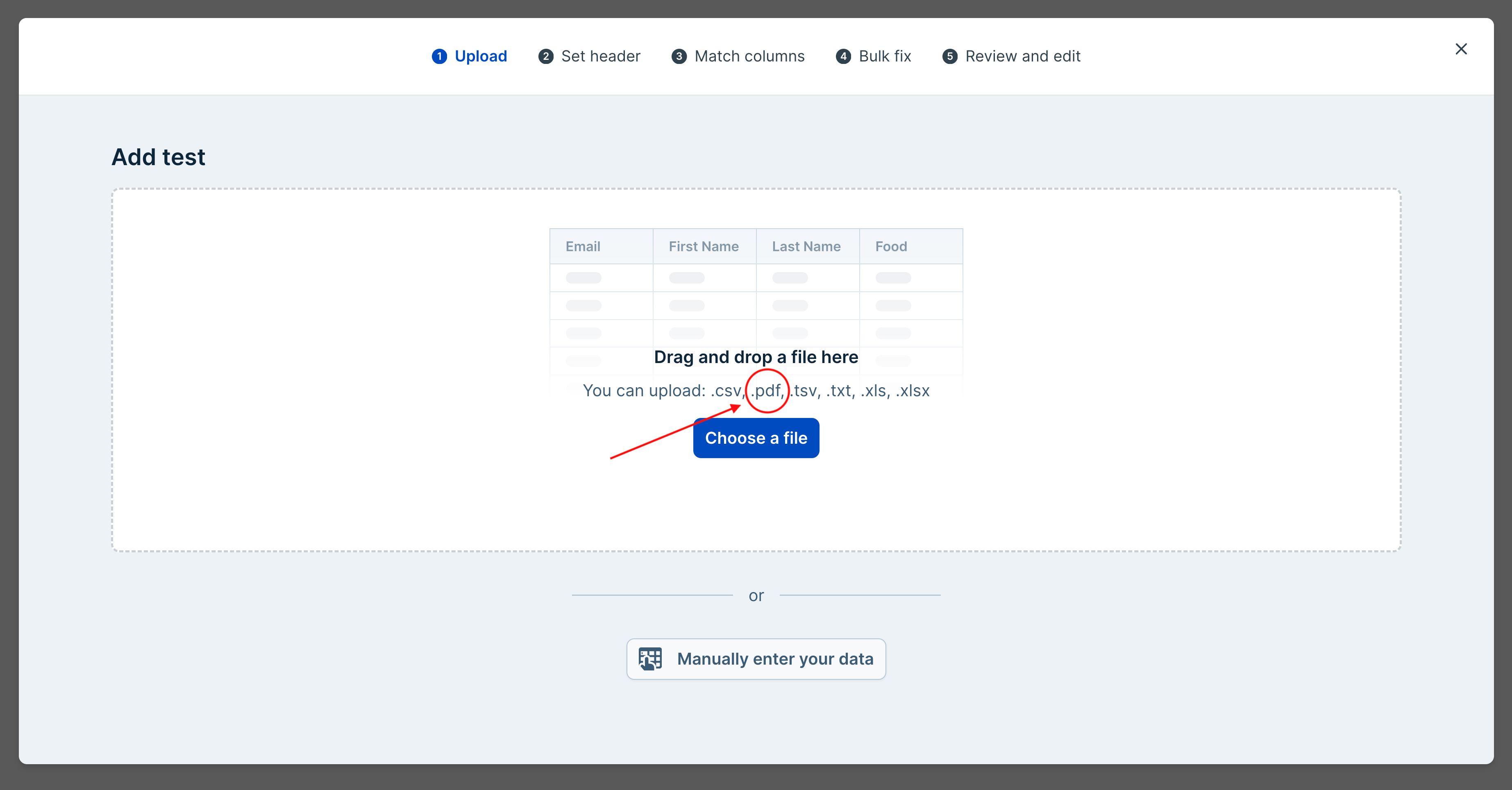

We’re done! Let’s try it in Dromo and see how it works. Open the Dromo importer and observe the file extensions now include ‘pdf’.

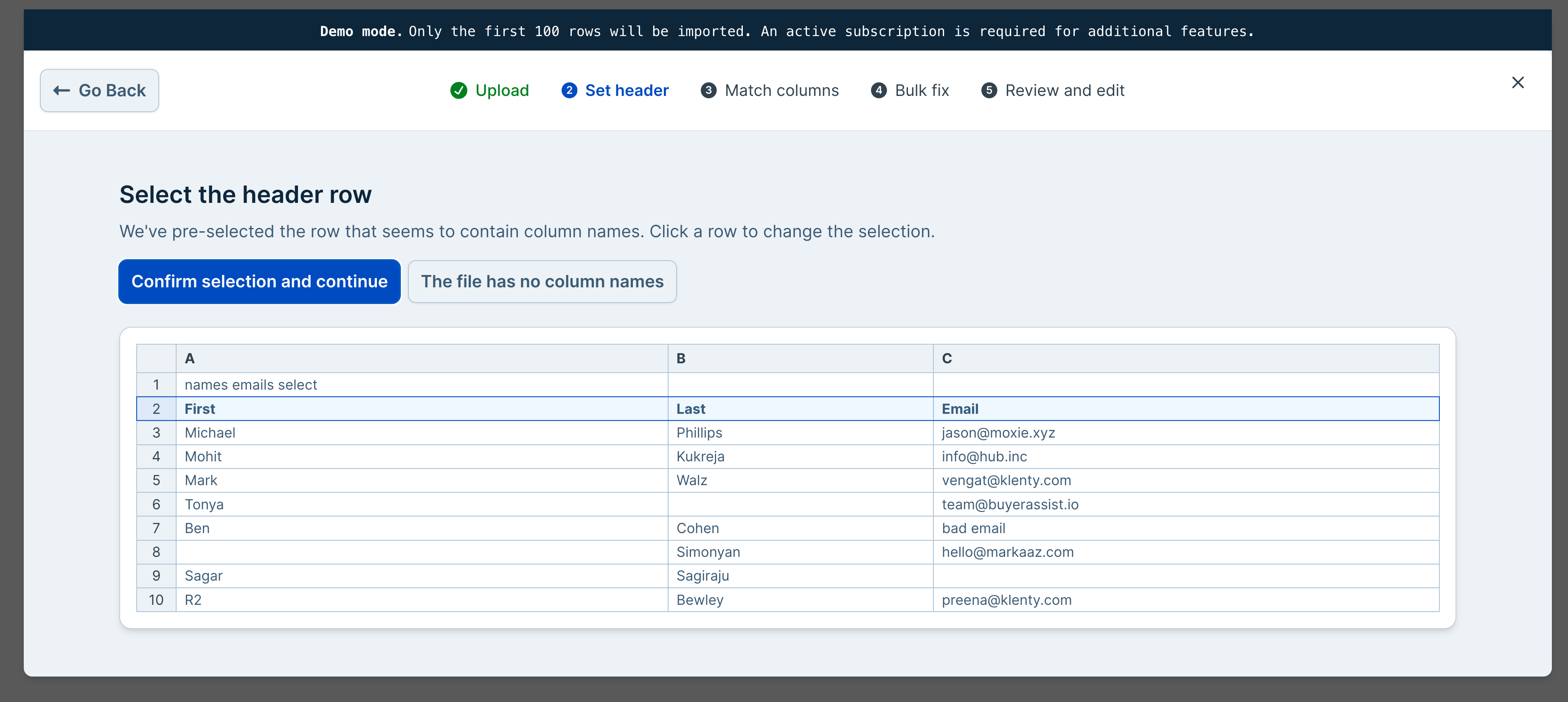

Drag and drop your PDF test file. Your data should be properly parsed and loaded.

Full Complete Demo

// Using PapaParse https://www.papaparse.com/ to parse the CSV string
import Papa from "papaparse";

const fields = [
  {
    label: "Email",
    key: "email",
    type: "email",
  },
  {
    label: "First Name",
    key: "firstName",
  },
  {
    label: "Last Name",
    key: "lastName",
  },
  {
    label: "Food",
    key: "food",
    type: "select",
    selectOptions: [
      { label: "Apple", value: "Apple" },
      { label: "Banana", value: "Banana" },
      { label: "Orange", value: "Orange" },
      { label: "Strawberry", value: "Strawberry" },
    ],
  },
];

const settings = {
  importIdentifier: "Custom Parser Example",
};

const user = {
  id: "12345",
};

const dromo = new DromoUploader("FRONTEND_API_KEY", fields, settings, user);

dromo.registerFileParser({
  extensions: ["pdf"],
  parseFile: async (buffer, fileName) => {
    const myPDFTablesAPIKey = "<YOUR PDF TABLED API KEY>";
    const url = `https://pdftables.com/api?key=${myPDFTablesAPIKey}&format=csv`;
    const formData = new FormData();
    formData.append("file", new Blob([buffer]), fileName);

    const response = await fetch(url, {
      method: "POST",
      body: formData,
    });

    // text data response is a CSV string
    const data = await response.text();
    const lines = Papa.parse(data).data as string[][];

    // Pad the lines to ensure they're all the same length
    const maxLen = Math.max(...lines.map((row) => row.length));
    const result = lines.map((row) => {
      const padding = Array(maxLen - row.length).fill("");
      return [...row, ...padding];
    });

    return result;
  },
});

// Using PapaParse https://www.papaparse.com/ to parse the CSV string
import Papa from "papaparse";
...

<DromoUploader
  licenseKey={"FRONTEND_API_KEY"}
  user={{ id: "12345" }}
  fields={[
    {
      label: "Email",
      key: "email",
      type: "email",
    },
    {
      label: "First Name",
      key: "firstName",
    },
    {
      label: "Last Name",
      key: "lastName",
    },
    {
      label: "Food",
      key: "food",
      type: "select",
      selectOptions: [
        { label: "Apple", value: "Apple" },
        { label: "Banana", value: "Banana" },
        { label: "Orange", value: "Orange" },
        { label: "Strawberry", value: "Strawberry" },
      ],
    },
  ]}
  settings={{
    importIdentifier: "Custom Parser Example",
  }}
  fileParsers={[
    {
      extensions: ["pdf"],
      parseFile: async (buffer, fileName) => {
        const myPDFTablesAPIKey = "<YOUR PDF TABLED API KEY>";
        const url = `https://pdftables.com/api?key=${myPDFTablesAPIKey}&format=csv`;
        const formData = new FormData();
        formData.append("file", new Blob([buffer]), fileName);

        const response = await fetch(url, {
          method: "POST",
          body: formData,
        });

        // text data response is a CSV string
        const data = await response.text();
        const lines = Papa.parse(data).data as string[][];

        // Pad the lines to ensure they're all the same length
        const maxLen = Math.max(...lines.map((row) => row.length));
        const result = lines.map((row) => {
          const padding = Array(maxLen - row.length).fill("");
          return [...row, ...padding];
        });

        return result;
      },
    },
  ]}>
  Import Users
</DromoUploader>
