Hooks

Dromo's Hooks help you reformat, validate, and correct data automatically via custom functions per column and/or row. For example, using these hooks you can automatically reformat area codes or country codes, remove special characters, validate emails against external data, or anything else you can think of.

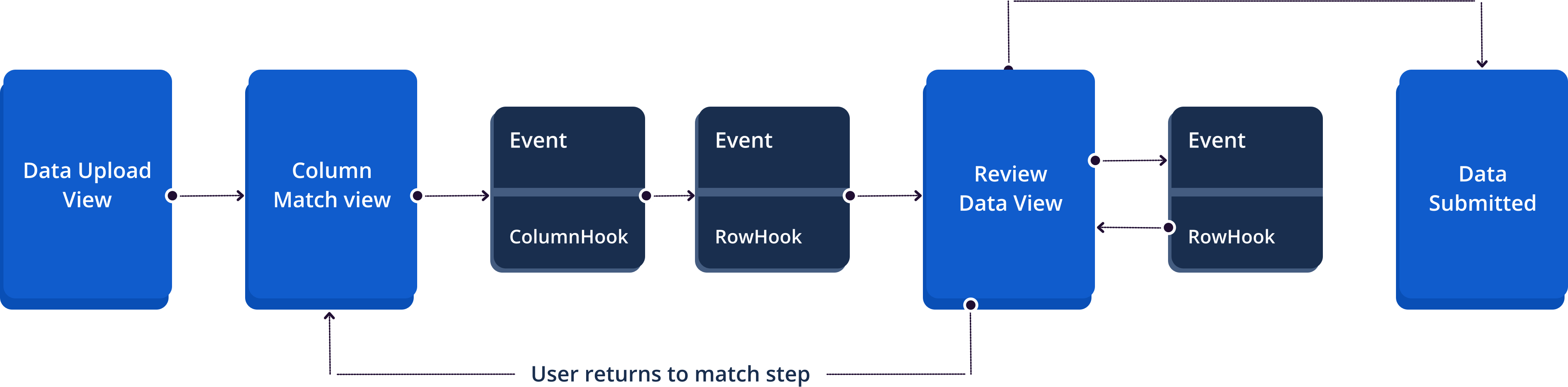

The diagram below shows the general flow for Dromo. Column hooks run first and only once after the "column matching" stage. After these run, row hooks will run for each record. Row hooks will also run on a record after it is updated by the user. If you only want to run a row hook on init or on change, you can configure it accordingly.

Column hooks

Column hooks run on a specified column at the beginning of the column matching process. They are run before the row hooks and will only run once during the import process.

Column hooks are called with a single argument, values, with an array of objects. Each object corresponds to one value in the column, and has two parameters.

  • indexnumber

    The row index of the column value, starting with 0

  • valuestring

    The raw value as imported

Column hooks must return an array of objects in a similar format.

Column hooks may return the value async, wrapped in a promise.

  • indexnumberRequired

    The row index of the column value. This should be unchanged from the input.

  • valuestring

    The new value for this cell. If omitted, the value is left unchanged.

  • infoInfoMessage[]

    An array of messages you would like to add to this cell.

    For more details, see Info Messages.

    If omitted, no messages are added.

Sample input and output

Given the following imported data:

NameEmail
Michelle Doemichelledoe@gmail.com
Jane Doejanedoe@gmail.com
Steve Jonessteve@hotmail.com
Wayne Gretzkywayne@nhl.com

A column hook registered on the Email field would be passed the following data:

[
{ value: "michelledoe@gmail.com", index: 0 },
{ value: "janedoe@gmail.com", index: 1 },
{ value: "steve@hotmail.com", index: 2 },
{ value: "wayne@nhl.com", index: 3 },
];

This column hook could return something like this:

[
{
index: 0,
value: "michelledoe@aol.com",
info: [
{
message: "Automatically corrected email domain",
level: "info", // should be "info", "warning" or "error"
},
],
},
// we can omit cells that don't need any changes or messages
{
index: 2,
// Don't need to supply value if we're not changing it
info: [
{
message: "Email not found",
level: "error",
},
],
},
];
Column hook example
const fields = [
{
label: "Email",
key: "email",
},
];

const settings = {
importIdentifier: "Column Hooks Server Validation",
};

const user = {
id: "12345",
};

const dromo = new DromoUploader("FRONTEND_API_KEY", fields, settings, user);

dromo.registerColumnHook("email", function (values) {
return values.map((row) => {
const newRow = {
index: row.index,
value: "0" + row.value,
info: [
{
message: "Prepended 0 to value",
level: "info",
},
],
};
return newRow;
});
});

Row hooks

Row hooks run validation on each record (row) of data and return the record with new data and/or user messages. Row hooks come in two variants: standard and bulk.

Row hooks are run once in "init" mode after the column matching step and before the user begins the review step, and are run with the full dataset.

Row hooks are run again in "update" mode after each time the user changes any data, with only the changed rows.

Standard row hooks

Standard row hooks are invoked once for every row on init, and once for every row that changed on update.

Standard row hooks are called with two arguments.

  • recordobject

    • indexnumber

      The index of this row

    • rowobject

      The row object will have keys matching the field key of each mapped field. Each of these keys will contain an object with data and metadata of that field in the given row.

      • valuestring

        The value of this field at this row, as displayed to the user

      • resultValuestring | boolean | number | null

        The value of this field at this row, as it will appear in the result data

      • infoInfoMessage[]

        An array of any info messages you have previously added to this cell

  • mode"init" | "update"

    Mode will be "init" if running before the start of the review step, and "update" if running due to a user change.

Row hooks should return the updated record in a similar format.

Row hooks may return the value async, wrapped in a promise.

  • rowobjectRequired

    The row object should contain keys matching the field key of each mapped field. If a mapped field is omitted, it will remain unchanged.

    Each field key object may have the following entries:

    • valuestring

      The new value for this row

    • infoInfoMessage[]

      New messages for this row. Messages returned will replace any previously set messages. If info is omitted, messages will remain unchanged.

info

When fetching external data, we recommend that you make any API calls in a column hook and then validate that the data remains correct using a row hook in update mode.

Standard row hook example
const fields = [
{
label: "Email",
key: "email",
},
];

const settings = {
importIdentifier: "Row Hooks Example",
};

const user = {
id: "12345",
};

const dromo = new DromoUploader("FRONTEND_API_KEY", fields, settings, user);

dromo.registerRowHook(function (record, mode) {
const newRecord = record;
if (record.index < 10 && mode === "init") {
newRecord.row.email.value = "0" + newRecord.row.email.value;
newRecord.row.email.info = [
{
message: "Prepend 0 to value",
level: "info",
},
];
}
return newRecord;
});

Bulk row hooks

Bulk row hooks are invoked a single time on init with the full dataset, and a single time on update with all of the changed rows.

Bulk row hooks are a good fit if you need to perform potentially long-running operations that can be optimized by processing all changes in a single function call.

Bulk row hooks work exactly like standard row hooks, except the first parameter is an array of record objects instead of a single record object. Similarly, bulk row hooks must return an array of record objects, preserving the index parameter of each record.

Bulk row hook example
const fields = [
{
label: "Email",
key: "email",
},
];

const settings = {
importIdentifier: "Row Hooks Example",
};

const user = {
id: "12345",
};

const dromo = new DromoUploader("FRONTEND_API_KEY", fields, settings, user);

dromo.registerBulkRowHook(function (records, mode) {
return records.map((record) => {
const newRecord = record;
if (record.index < 10 && mode === "init") {
newRecord.row.email.value = "0" + newRecord.row.email.value;
newRecord.row.email.info = [
{
message: "Prepend 0 to value",
level: "info",
},
];
}

return newRecord;
});
});

Row delete hooks

Row delete hooks are called when a row (or rows) is removed from the table by the user.

Row delete hooks are called once for each row that was removed.

  • recordobject

    • indexnumber

      The index of this row

    • rowobject

      The row object will have keys matching the field key of each mapped field. Each of these keys will contain an object with data and metadata of that field in the given row.

      • valuestring

        The value of this field at this row, as displayed to the user

      • resultValuestring | boolean | number | null

        The value of this field at this row, as it will appear in the result data

      • infoInfoMessage[]

        An array of any info messages you have previously added to this cell

Row delete hook example
dromo.registerRowDeleteHook(function (record) {
console.log("Deleted row index: " + record.index);
});

Step hooks

Step hooks are callbacks that are invoked at different parts of the import process. In addition to fetching metadata about the import at that time, you can use them to call mutation functions like addField.

UPLOAD_STEP hook

This hook is called when the user has completed uploading a file and provides you with a 20 row data preview of that data.

The function is called with two arguments.

  • instanceDromoUploader

    The Dromo Uploader instance which you can call mutation methods on

  • previewDatastring[][]

    An array of arrays containing the first 20 rows of raw uploaded data

Upload step hook example
dromo.registerStepHook("UPLOAD_STEP", function (instance, data) {
instance.addField({
label: "Full Name",
key: "fullName",
});

console.log(data.filename, data.dataPreview);
});

REVIEW_STEP hook

This hook is triggered just before the final review screen loads (and before any of the row and column hooks).

The function is called with two arguments.

  • instanceDromoUploader

    The Dromo Uploader instance which you can call mutation methods on

  • reviewStepDataobject

    • rawHeadersstring[] | null

      The raw headers from the uploaded file. If no file was uploaded (e.g. manual entry was used), this will be null.

    • headerMapping{ [header: string]: string }

      An object whose keys are the file headers and values are the field keys of the field the header was mapped to

    • fieldsobject

      An object whose keys are the field keys and values are objects containing metadata about that field

      • fileHeaderstring | null

        The header this field was mapped to. null if no file was uploaded.

      • fileHeaderIndexnumber | null

        The column header index this field was mapped to. null if no file was uploaded.

      • isCustomboolean

        Whether this field was added by the user as a custom field

Review step hook example
dromo.registerStepHook("REVIEW_STEP", function (instance, data) {
instance.addField({
label: "Full Name",
key: "fullName",
});

console.log(data.rawHeaders, data.headerMapping, data.fields);
});

REVIEW_STEP_POST_HOOKS hook

This hook is triggered during the review step after all of the initial row and column hooks have run (and after any REVIEW_STEP hooks have run). It can be handy for doing batched updates to the data based on aggregated results from row or column hooks.

This hook is triggered during the review step after all of the initial row and column hooks have run (and after any REVIEW_STEP hooks have run). It can be handy for doing batched updates to the data based on aggregated results from row or column hooks.

The function is called with two arguments.

  • instanceDromoUploader

    The Dromo Uploader instance which you can call mutation methods on

  • reviewStepDataobject

    • headerMapping{ [header: string]: string }

      An object whose keys are the file headers and values are the field keys of the field the header was mapped to

    • fieldsobject

      An object whose keys are the field keys and values are objects containing metadata about that field

      • fileHeaderstring | null

        The header this field was mapped to. null if no file was uploaded.

      • fileHeaderIndexnumber | null

        The column header index this field was mapped to. null if no file was uploaded.

      • isCustomboolean

        Whether this field was added by the user as a custom field

Review step post hooks example
dromo.registerStepHook("REVIEW_STEP_POST_HOOKS", function (instance, data) {
instance.addInfoMessages([
{
rowIndex: 5,
fieldKey: "month",
level: "info",
message: "Sales exceed previous month",
},
]);

console.log(data.headerMapping, data.fields);
});

Working with info messages

Dromo offers the ability to add info messages to data cells to enable custom validation and provide other feedback to the user.

You can add and update info messages via column hooks, row hooks, and the updateInfoMessages method in step hooks.

Info messages are provided as objects with these parameters.

  • messagestringRequired

    The message to be displayed to the user in the review screen when they hover over the corresponding cell

  • level"info" | "warning" | "error"
    Default: "error"

    The nature of the message.

    • A cell with an "error" message is highlighted in red. It is considered a validation error and impacts the user's submission options based on invalidDataBehavior
    • A cell with a "warning" message is highlighted in yellow
    • A cell with an "info" message is highlighted in blue

The Dromo Uploader instance

Step hooks provide access to the Dromo Uploader instance, which exposes methods to alter the import.

instance.addField

Adds a field to the schema after a step hook has completed.

By default, the field will be added to the end of the fields.

You may optionally provide a position object specifying where in the list of fields to insert the new one.

  • fieldFieldRequired

    A field spec for the new field to add

  • position{ before: string } | { after: string }

    Specifies where in the list of fields to add the new one.

    If provided, must be an object of the form { before: fieldKey } or { after: fieldKey } where fieldKey is the key of a mapped field. If no mapped field with the given key exists, the new field will be added to the end.

Guide

For an example of concatenating or splitting fields, see the Guide.

instance.updateInfoMessages

Updates the messages for targeted cells, overwriting any previous messages.

  • updatesobject[]Required

    An array of objects with an object for each cell to update the messages on

    • rowIndexnumberRequired

      The 0-indexed position of the row you are targeting

    • fieldKeystringRequired

      The key of the field you are targeting

    • messagesInfoMessage[]Required

      An array of infoMessages which will be set for the cell at the specified row and field.

      An empty array will clear existing messages from the cell.

updateInfoMessages example

In this case, if you had previously set a message on the email field of row 3 or the phone field of row 8, these messages would be replaced with the new ones.

instance.updateInfoMessages([
{
rowIndex: 3,
fieldKey: "email",
messages: [{ level: "warning", message: "Email has not been confirmed" }],
},
{
rowIndex: 8,
fieldKey: "phone",
messages: [{ level: "error", message: "Phone number not in database" }],
},
]);
